    XFP Pluggable EDFA Product Specification

    Features Fully-controlled module with communication interface Supports APC mode Saturation output power up to 14 dBm Low power consumption

    1. 详细信息
    2. 参数规格

    Product Introduction

    The XFP EDFA module is a standard XFP package amplifier with XFP interface and protocol

    compatible design. The micro-processor controlled and managed XFP can ideally amplify the

    signal for full C-band. It is optimized for large input dynamic range while providing excellent

    noise figure performance.


    山东万硕光电设备有限公司XFP Pluggable EDFA.pdf

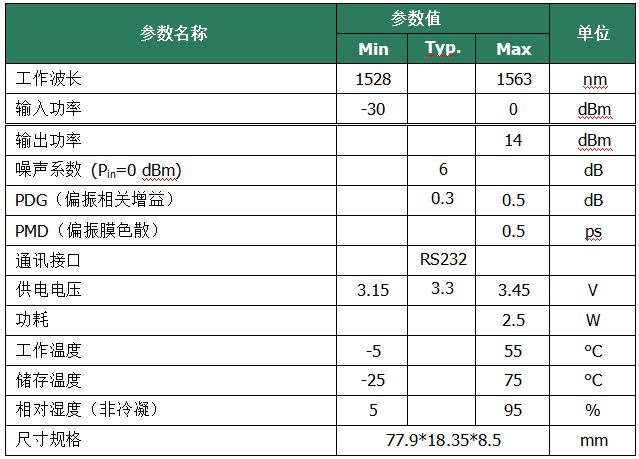

    Specifications


    Parameter

    Specification



    Unit

    Min

    Typ.

    Max

    Operating Wavelength

    1528


    1563

    nm

    Input Power

    -30


    0

    dBm


    Parameter

    Specification



    Unit

    Min

    Typ.

    Max

    Output Power



    14

    dBm

    Noise Figure (Pin=0 dBm)


    6


    dB

    PDG


    0.3

    0.5

    dB

    PMD



    0.5

    ps

    Communication Interface


    RS232



    Power Supply Voltage

    3.15

    3.3

    3.45

    V

    Power Consumption



    2.5

    W

    Operating Temperature

    -5


    55

    °C

    Storage Temperature

    -25


    75

    °C

    Relative Humidity (non-condensation)

    5


    95

    %

    Dimensions

    77.9*18.35*8.5

    mm
