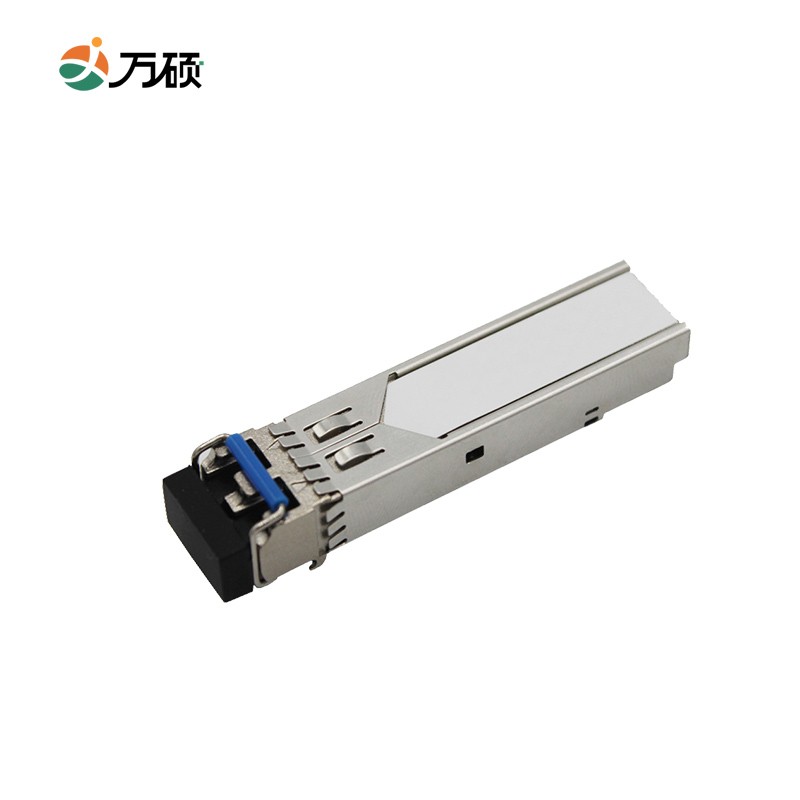

    WS-PEE222L-XD

    Gigabit Ethernet Gigabit Fiber Channel Switch to Switch interface Switched backplane applications

    1. 详细信息
    2. 参数规格

    Hot-pluggable

    1.25Gbps operation

    +3.3V single power supply

     High-performance and cost-effective

    1310nm FP and PIN photodetector for 20km transmission

    Compliant with SFP MSA and SFF-8472 with duplex LC

    receptacle

    Digital Diagnostic Monitoring

    Compatible with SONET OC-24

    Operating case temperature:0 to +70°C -40 to +85°C

    RoHS compliant (lead free)


    山东万硕光电设备有限公司WS-PEE222L-xD.pdf


    Transmitter Electrical Characteristics

    Parameter

    Symbol

    Min

    Typ

    Max

    Unit

    Differential Input Voltage Swing

    VIN

    400

    -

    2000

    mV

    Tx Differential Input Impendence

    ZIN

    -

    100

    -

    Ω

    Transmitter Disable Voltage

    VDIS

    2.0

    -

    VCC+0.3

    V

    Transmitter Enable Voltage

    VEN

    0

    -

    0.8

    V

    TFAULT Logic High

    VTFH

    2.4

    -

    VCC

    V

    TFAULT Logic Low

    VTFL

    VEE

    -

    VEE+0.4

    V

    Receiver Electrical Characteristics

    Parameter

    Symbol

    Min

    Typ

    Max

    Unit

    Differential output Voltage Swing

    VOUT

    400

    -

    1000

    mV

    Rx Differential Output Impendence

    ZOUT

    -

    100

    -

    Ω

    LOS Assert Voltage

    VLOSA

    2.4

    -

    VCC

    V

    LOS De-assert Voltage

    VLOSD

    VEE

    -

    VEE+0.4

    V


    Transmitter Characteristics

    Parameter

    Symbol

    Min

    Typ

    Max

    Unit

    Notes

    Laser Type


    FP



    Data Rate

    -

    -

    1.25

    -

    Gb/s


    Center Wavelength Range

    λ

    1260

    1310

    1360

    nm


    RMS Spectral Width

    Δλ

    -

    -

    4

    nm


    Average Launch power of OFF transmitter

    POFF

    -

    -

    -45

    dBm


    Launch Optical <span style="font-family: Arial;color: rgb(0, 0, 0);font-siz
